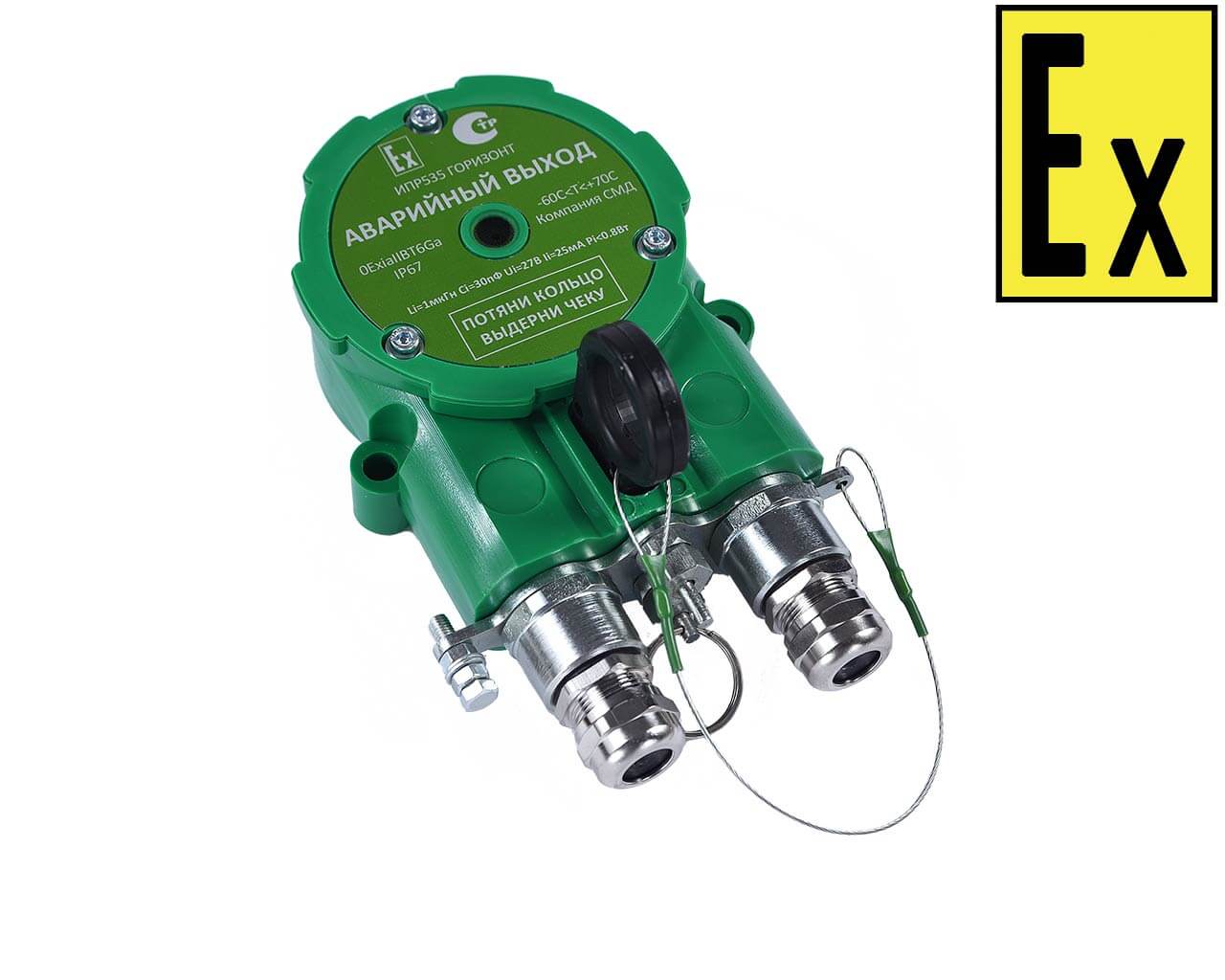

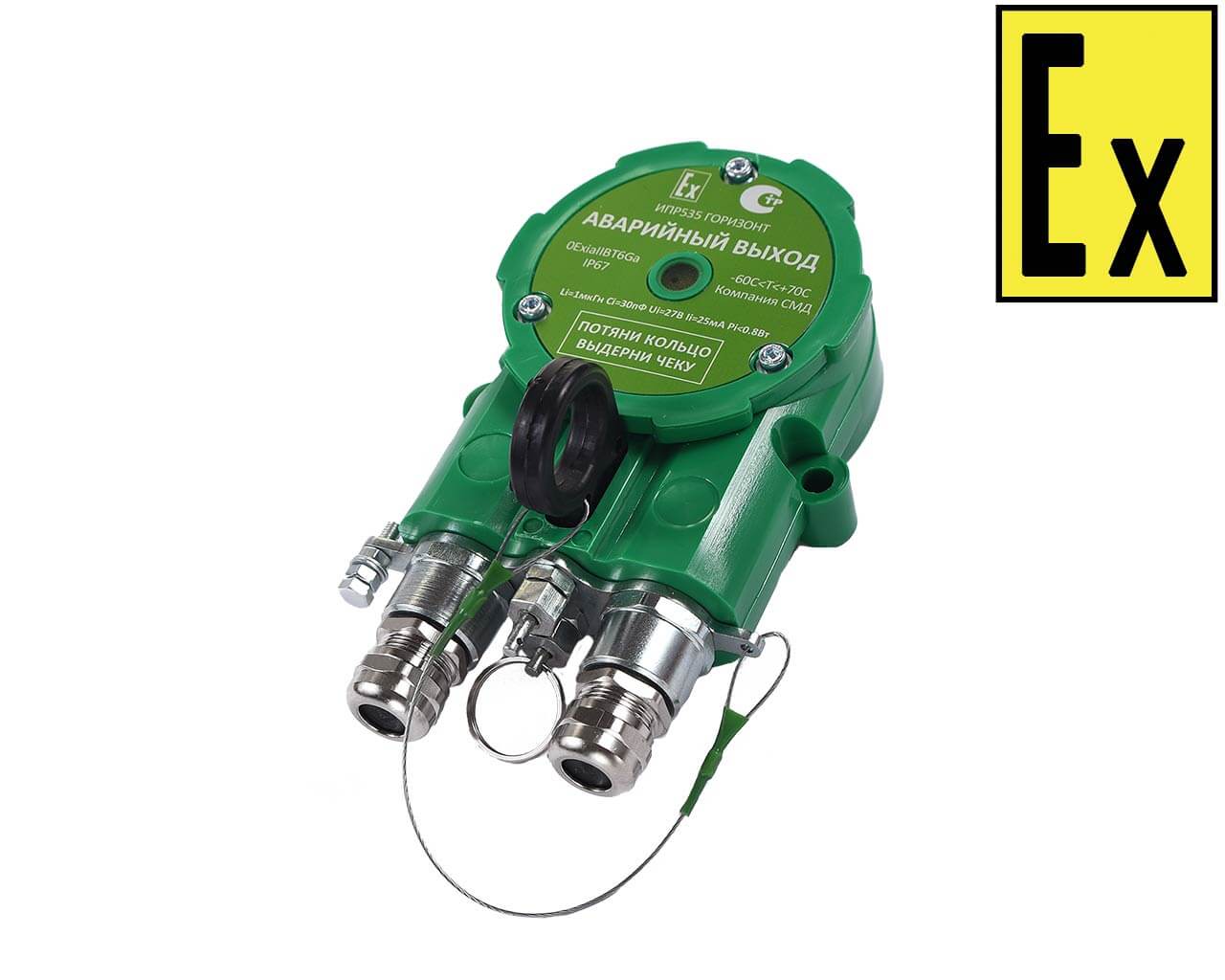

UDP 535-216 HORIZON "EMERGENCY EXIT"

Explosion protection marking	PO Ex ia I Ma / 0Ex ia IIC T6 Ga X / Ex ia IIIC 850C Da X
Marking of microprotection parameters	LI: 1 µH, CI: 30 pF, UI: 27 V, II: 25 mA, PI: 0.8 W
Degree of protection of the shell	IP67
Operating temperature	-60C<Ta<70C
Supply voltage	8-28V
Current consumption in standby mode, no more	80uA
Own current consumption in the "Fire" mode, no more	0.7mA
Maximum current of the external additional resistor circuit, not more than	100mA
Case color:	green
Housing material	High impact polyamide
Dimensions without cable entries	134x108x46mm

Selection table for additional resistors

FACP type	Connection options
FACP type	Parallel connection (make)	Sequential connection (on opening)
LB-07	Rd must ensure current consumption> 15 mA,	Rd \u003d 11 kOhm, Rok \u003d 2 kOhm, VDok \u003d KD522.
LB-07	Rok \u003d 2 kOhm, VDok \u003d KD522.	Rd \u003d 11 kOhm, Rok \u003d 2 kOhm, VDok \u003d KD522.
Ray	Rd = 2.4 kOhm, Rok = 2.4 kOhm, VDok = KD521A.	Rd = 2.2 kOhm, Rok = 2.4 kOhm, VDok = KD521A.
PPK-2	Rd = 1.2 kOhm, Rok = 3.6 kOhm, VDok = KD521A.	Rd = 10.0 kOhm, Rok = 3.6 kOhm, VDok = KD521A.
Bolide	Rd \u003d 1.5 kOhm (3.0 kOhm - to determine double drawdown),	Rd \u003d 8.2 kOhm (4.7 kOhm - to determine double drawdown),
Bolide	Rok \u003d 4.7 kOhm, do not install VDok	Rok \u003d 4.7 kOhm, do not install VDok
Yakhont-16i	Rd \u003d 1.8 kOhm (4.0 kOhm - to determine double drawdown),	Not applicable
Yakhont-16i	Rok = 8.2 kOhm, do not set VDok	Not applicable
WERS	Rd \u003d 820 Ohm (1.8 kOhm - to determine double drawdown),	Rd \u003d 10 kOhm (4.7 kOhm - to determine double drawdown),
WERS	Rok = 7.5 kOhm, do not set VDok	Rok = 7.5 kOhm. Do not install VDoc

AM - indicates the presence of a product modification with an address label.

The detector IPR535 Horizon Emergency exit VZ is supplied with cable glands of various designs:

- for open laying of the attached cable (index in the designation - K );
- for laying the attached cable in the pipe G1/2 ( T-1/2 );
- for laying the attached cable in the pipe G3/4 ( T-3/4 );
- for connecting an armored cable ( B );
- for connecting a cable in a metal hose RZTSH-15mm or 20mm ( KM15, KM20 ).

The detector IPR535 Horizontal Emergency exit VZ is supplied with two cable glands, which allow the detector to be installed in an alarm loop with a round cable with a diameter of 6-10 mm.
