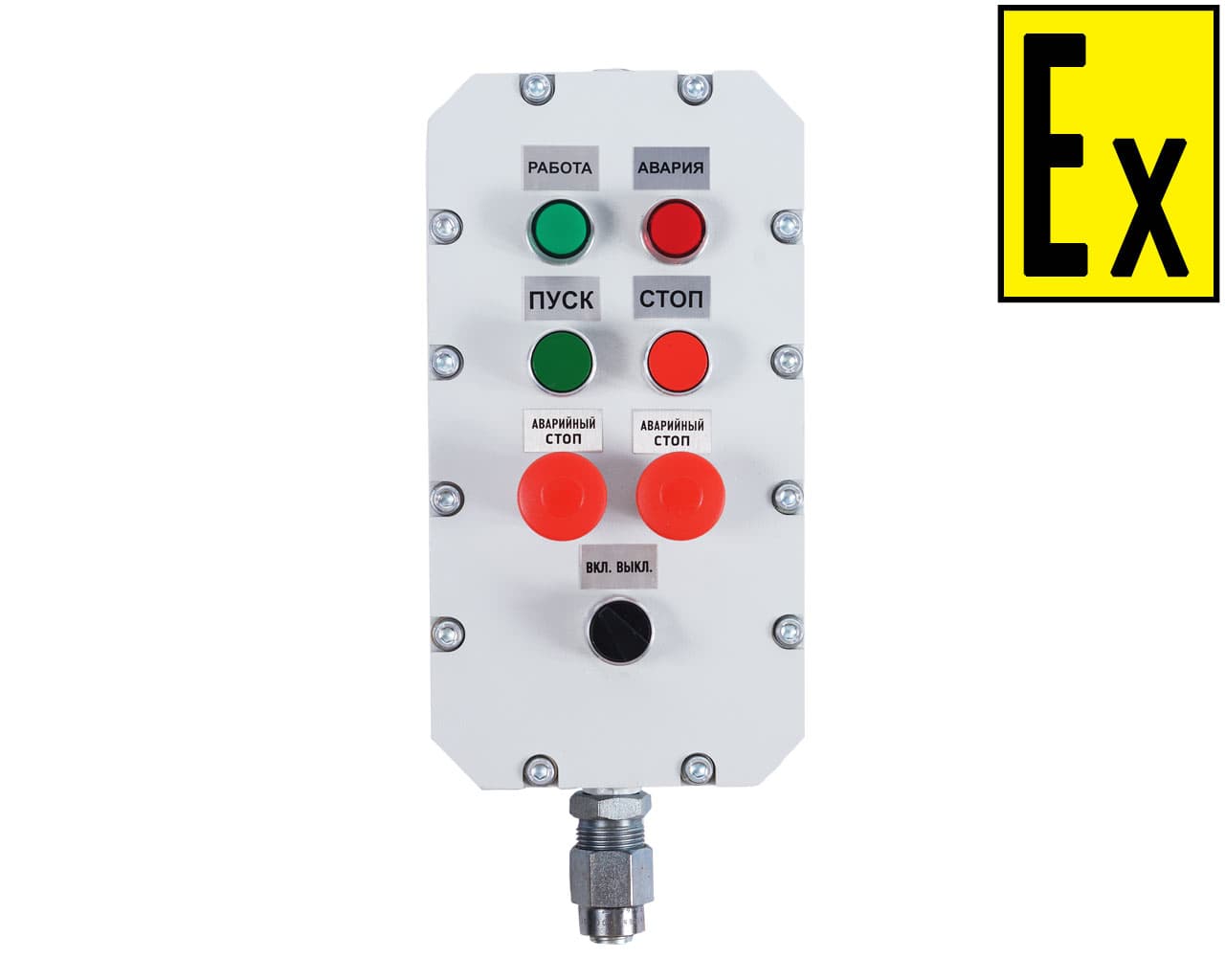

The stations are intended for switching and indicating the operating mode of AC and DC electric circuits of industrial frequency in hazardous areas.The stations are marked with explosion protection "1Ex d IIB T6 Gb" and can be used in explosive zones of class 1 and 2 according to GOST IEC 60079-10-1-2011.Body material - aluminum alloy.
The post contains up to three switching elements (button, switch) or indication (LED lamp).The types of elements are specified when ordering.Posts can have plates with operational inscriptions in Russian and foreign languages: "Start", "Stop", etc.The posts are designed for connecting armored and non-armored electric cables of circular cross-section, as well as cables in a metal hose or pipe.
Posts are supplied with cable glands of various designs:
- for open laying of cables with a diameter of 10-18mm;
- for laying a cable with a diameter of 10-14 mm in a pipe with an attached thread G1 / 2;
- for laying a cable with a diameter of 10-18 mm in a pipe with an attached thread G3 / 4;
- for inserting armored cables with a through-hole diameter of 10-18 mm and an outer diameter of up to 25 mm;
- for connecting cables up to 18mm in diameter in metal hose RZTsKh-20, 25, 32mm.The thread of all cable entries is pipe G3 / 4.
tab.
"Typical controls" ) in the order they are listed from top to bottom;
c - color (only for lamps and buttons K10, K11):
k - red; h - green; g - yellow; h - black;
k - type of contacts (only for buttons and switches):
NONO, NONZ, NZNZ, NZ, NO;
m - operative inscription (nameplate):
the text of the inscription is indicated in quotation marks, for example "START", it is desirable to use standard inscriptions (see.tab.
"Typical operational inscriptions" );
for multi-position switches, a comma-separated list of labels is indicated in ascending order of the switch position, for example, “POSITION 1”, “POSITION 2”.
Example of designation: PKV MK -type B 1ExdIIBT6Gb - B [3 / 4T1 / 2] - D [2 (3 / 4B)] - S [K11ch-NONO-sh1, L24z-sh3, P30-NONZ-sh6, sh10, sh9] post with explosion protection marking "1Ex d IIB T6 Gb", entry with G3 / 4 thread for pipe G1 / 2 on side B and two entries with G3 / 4 thread for armored cable on side D, black START button with locking with two contacts NO + NO, green indicator "OPERATION" for voltage 24V, switch for three positions with latching 0- "OFF", I- "RIGHT", II- "LEFT" with two contacts NO + NC.
