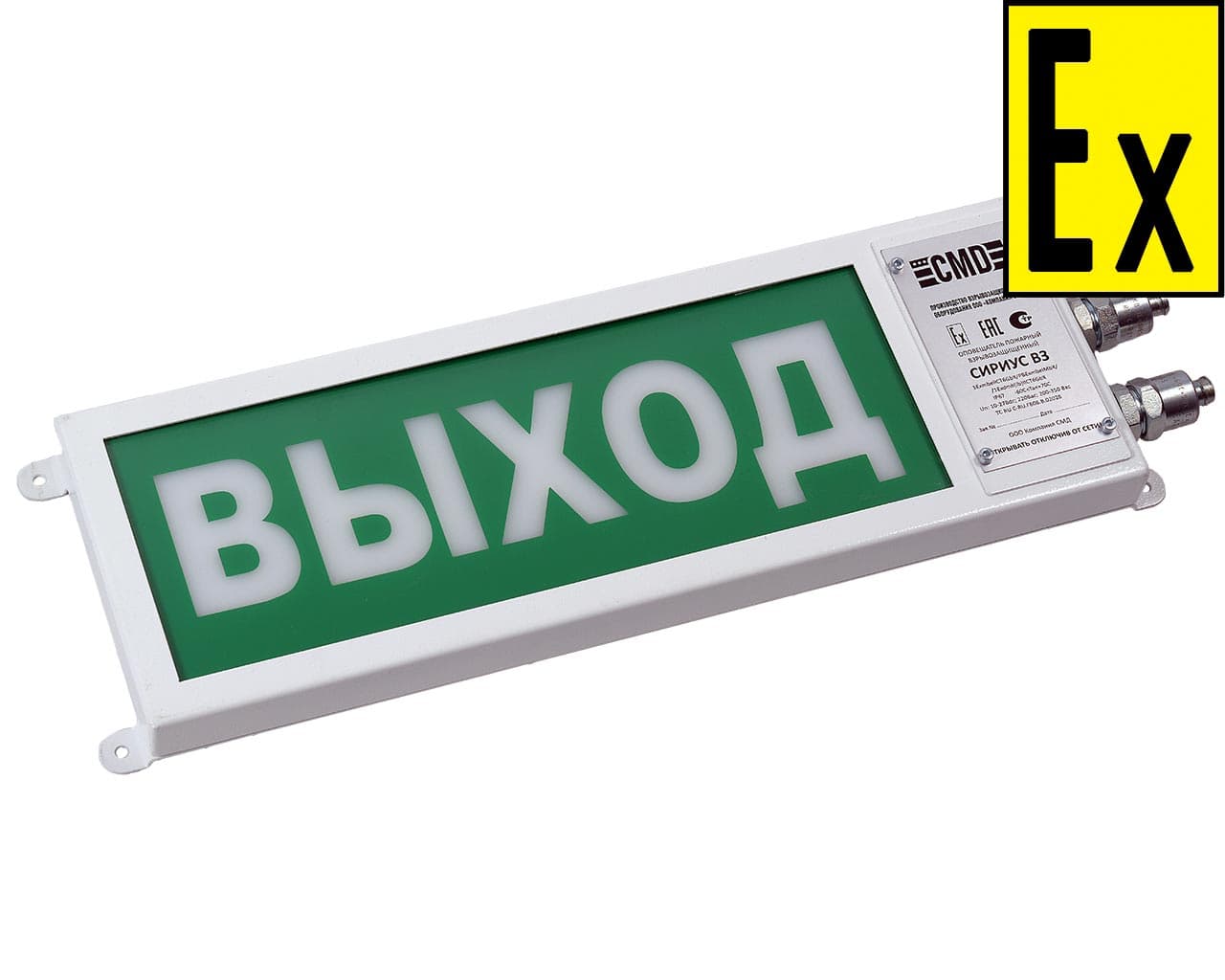

Sirius VZ series fire alarms (signals) are designed to alert people to a fire using a lighted information board and an audible signal. Sirius VZ stand-alone emergency lights are designed to illuminate corridors and escape routes.
Alarm devices and emergency lights are available in versions that differ in: housing material; notification type (light, sound); supply voltage; and the presence of a backup power source (Table 1).
Depending on the explosion protection design, alarms can be used in Class 1 and 2 hazardous areas according to GOST 31610.10-2012, as well as in underground mines, quarries, and their above-ground structures. The "X" at the end of the marking indicates: to prevent static discharge, wipe the alarm only with a damp cloth and avoid subjecting the translucent part to mechanical impact.
Table 1
| Description | Designation of execution | Supply voltage |
|
Explosion-proof light board |
Sirius VZ – X – S |
=10-27Vdc; ~176-250Vac; =200-350dc; |
|
Explosion-proof light and sound board |
Sirius VZ – X – SZ12-24 | =10-27Vdc; |
| Sirius VZ-X-SZ220 |
~176-250Vac; =200-350dc; |
|
| Explosion-proof light board with backup power supply | Sirius VZ – X – R |
=10-27Vdc; ~176-250Vac; =200-350dc; |
X – designation of the case material (P, M, H). Case material:
The posts are equipped with explosion-proof cable entries of the KV series, KV TU 27.33.13-138-81888935-2019. The connecting thread of the cable entries is M20x1.5. Cable entries allow the input and output of round cables of various diameters.
| Characteristic | Execution, mode | Meaning |
| Explosion protection marking |
RP Ex mb e I Мс Х/ 1Ex mb e IIC T6 Gb X PB Ex d mb[ib] I Mb X/ 1Ex d mb[ib] IIC T6 Gb X |
|
| Operating temperature | - | -60C<Ta<+70C |
| Degree of protection of the shell | - | IP67 |
| Supply voltage | -C, -SZ12-24 | D.C =10V - 27Vdc |
| -C, -SZ220 |
Alternating current ~165-250Vac, or |
|
| Current consumption of the light channel, no more than | D.C 10V – 27V |
350 mA |
| Alternating current 220V or constant 200-350Vdc |
50 mA | |
| Current consumption of the audio channel, no more than | D.C 10V – 27V |
150 mA |
| Alternating current ~220V or constant = 200-350Vdc |
30 mA | |
| Operating modes | - | Separate power supply for light and sound alerts; |
| Light notification modes | - | Permanent; Intermittent with frequency 1 Hz or 2 Hz. |
| Sound notification modes | - |
1 - Horn, monophonic sound 2.3 kHz; |
| Maximum visible illumination of the board, no more than | - | 1500 lux |
| Sound pressure level at a distance of 1 m, not less than | - | 105±5 dB |
| Frequency of generated sound signals | - | 1.5-3 kHz |
| Backup power supply type | -R, | Battery |
| Battery life, not less than | -R, | 3 o'clock |
| Light source type | - | High-efficiency LEDs |
| Dimensions of the inscription, not less than | 350x112 mm | |
| Steel, stainless steel | 330x112 mm | |
| Body material | - | Polyamide and polycarbonate; Steel 08, steel st.3; Stainless steel 12X18H10T |
| Overall dimensions without cable entries, no more than | Plastic case | 470x162x51 mm |
| Steel, stainless steel | 466x160x41 mm | |
| Weight, no more than | -P (plastic case) | 3 kg |
| -M (steel) | 3.5 kg | |
| -N (stainless steel) | 3.5 kg |
The sign is available with various inscriptions and pictograms, on a background of any color, as per the customer's specifications. Available colors: red; green; blue; yellow; black; white. When ordering custom inscriptions or pictograms, the customer must provide the text or image.
Designation when ordering
| Sirius VZ | P | - WITH | TO | - l | FIRE color, background color |
| 1 | 2 | 3 | 4 | 5 | 6 |
1 – designation of the Sirius VZ alarm series;
2 – body material:
" P " – plastic body (polyamide, polycarbonate);
" M " – steel body;
" H " – stainless steel body;
3 – notification type:
" C " – light board;
" SZ " – light and sound board;
" -Р " - a board with a backup power source;
4 – type of cable entries:
" K " - for open cable laying;
« T1/2 », « T3/4 » – for connecting a pipe with a G1/2 or G3/4 thread;
“ B ” – for armored cable with an outer diameter of up to 20.9 mm;
« KM10 », « KM12 », « KM15 », « KM20 » – for metal hose 10mm - 20mm.
5 – location of cable entries (view from the front side):
p – right (default, can be omitted);
l – left;
6 – text of the inscription or pictogram, for example “FIRE”, “GAS GO AWAY” with the color of the inscription and background.
22.44.01.03184.141. Type Approval Certificate of the Russian Maritime Register of Shipping EAEU No. RU D-RU.PA02.B.00352/22. Declaration of Conformity with EAEU TR 037/2016 "On Restricting the Use of Hazardous Substances in Electrical and Electronic Products" Series 001 No. 1901. Certificate of Conformity to Seismic Resistance GOST 30546 EAEU RU C-RU.BH02.B.00768/22. Certificate of Conformity to TR EAEU 012/2011 "On the Safety of Equipment for Work in Explosive Environments" EAEU No. RU D-RU.PA01.B.85224/22. Declaration of Conformity to TR CU 020/2011 "Electromagnetic Compatibility of Technical Equipment" Refusal decision No. 22/01/0249 in the certification of TR CU 010/2011 "On the safety of machinery and equipment" EAEU RU C-RU.AB03.B.00027/21. Certificate of Conformity with EAEU TR 043/2017 "On Requirements for Fire Safety and Fire Extinguishing Equipment" Operation manual. Explosion-proof fire alarms of the SIRIUS VZ series. General-purpose fire alarms of the SIRIUS OP series. Operation manual. Explosion-proof autonomous fire alarms Sirius VZ R. General-purpose industrial autonomous fire alarms Sirius OP R. Operation manual. Explosion-proof fire alarms of the SIRIUS VZ series. General-purpose industrial fire alarms of the SIRIUS OP series.
