Thermal housings of the Orion OP series are designed for installation in the inner space of video cameras with lenses and additional infrared illumination, devices for video signal playback and visual display of information, as well as other electronic equipment.The thermal casing allows you to prevent the influence of various aggressive and hazardous industrial environments on the equipment, qualitatively increasing the service life of the equipment.
The field of application is to ensure protection, safety and control over technological processes in complex - technological industries.
Thermo housings are designed for operation at ambient temperatures from minus 60 ° C to plus 50 ° C, type of climatic modification UHL1 in accordance with GOST 15150-69. Atmospheric pressure from 84 to 106.7 kPa.The degree of protection of the shell is IP67 in accordance with GOST 14254.
Protection against electric shock in accordance with GOST 12.2.007.0-75: class III / class I.The metal case has protective grounding and working insulation from live parts. With a supply voltage of 220V AC, protection class I, with a supply voltage up to 24V DC or AC - protection class III.
Thermo-housings are produced in versions that differ in the body material, overall dimensions, supply voltage, and the presence of infrared (IR) illumination.
Thermo housings are supplied with two cable glands for connecting cables with a diameter of 6-10mm
The Orion MK thermohousing is a shell for installed electronic equipment inside the case, which allows to limit the effects of an aggressive environment.Depending on the configuration, the Orion MK is installed at a remote distance from the object of observation, as high-definition cameras with built-in infrared illumination are used, which allows you to get a high-quality picture in conditions of night video surveillance.Diode-mounted lenses improve the viewing angle and backlight range.The inner space of the thermo-housings is equipped with heating in case of a drop in temperature, the optimal operating mode is set.

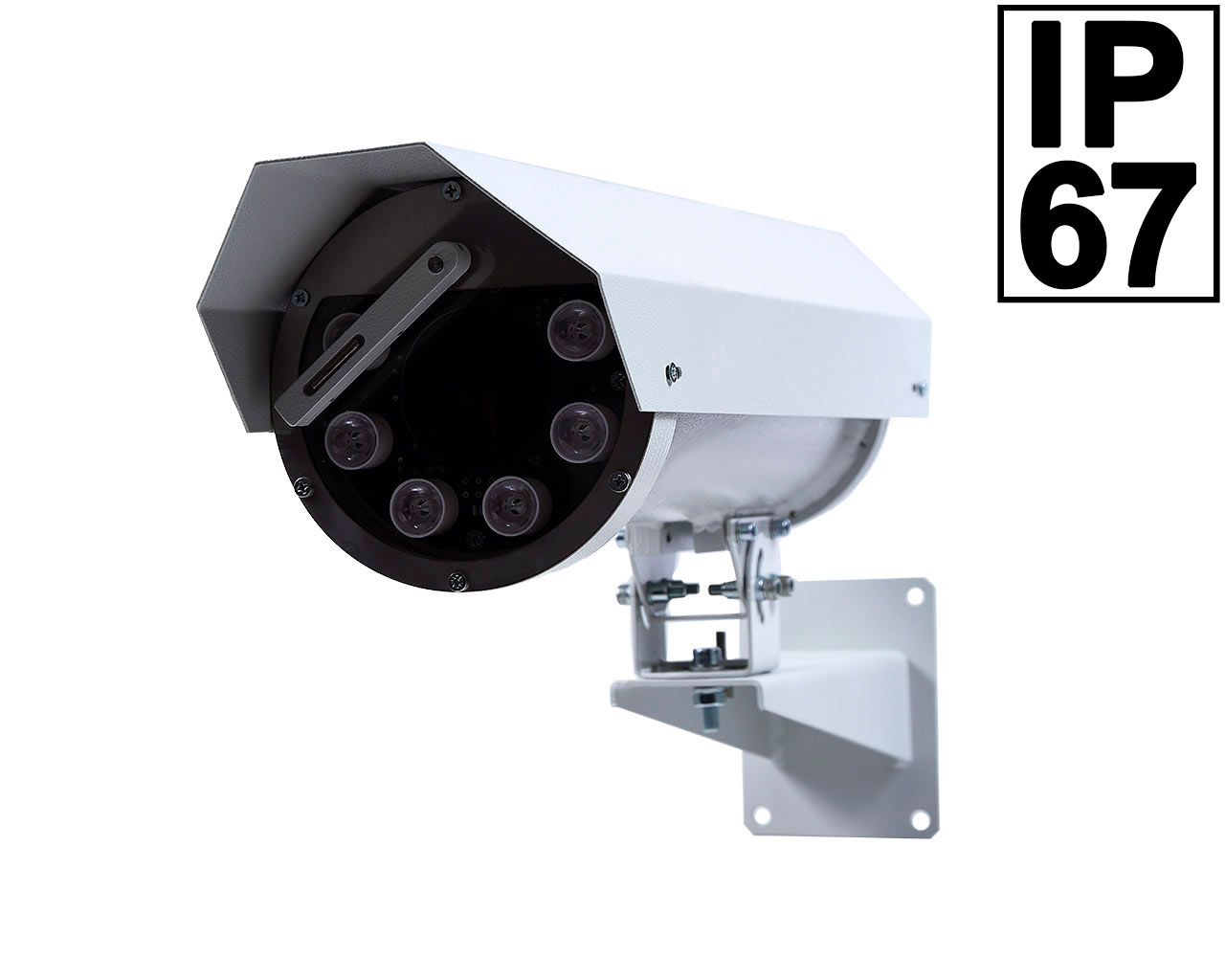

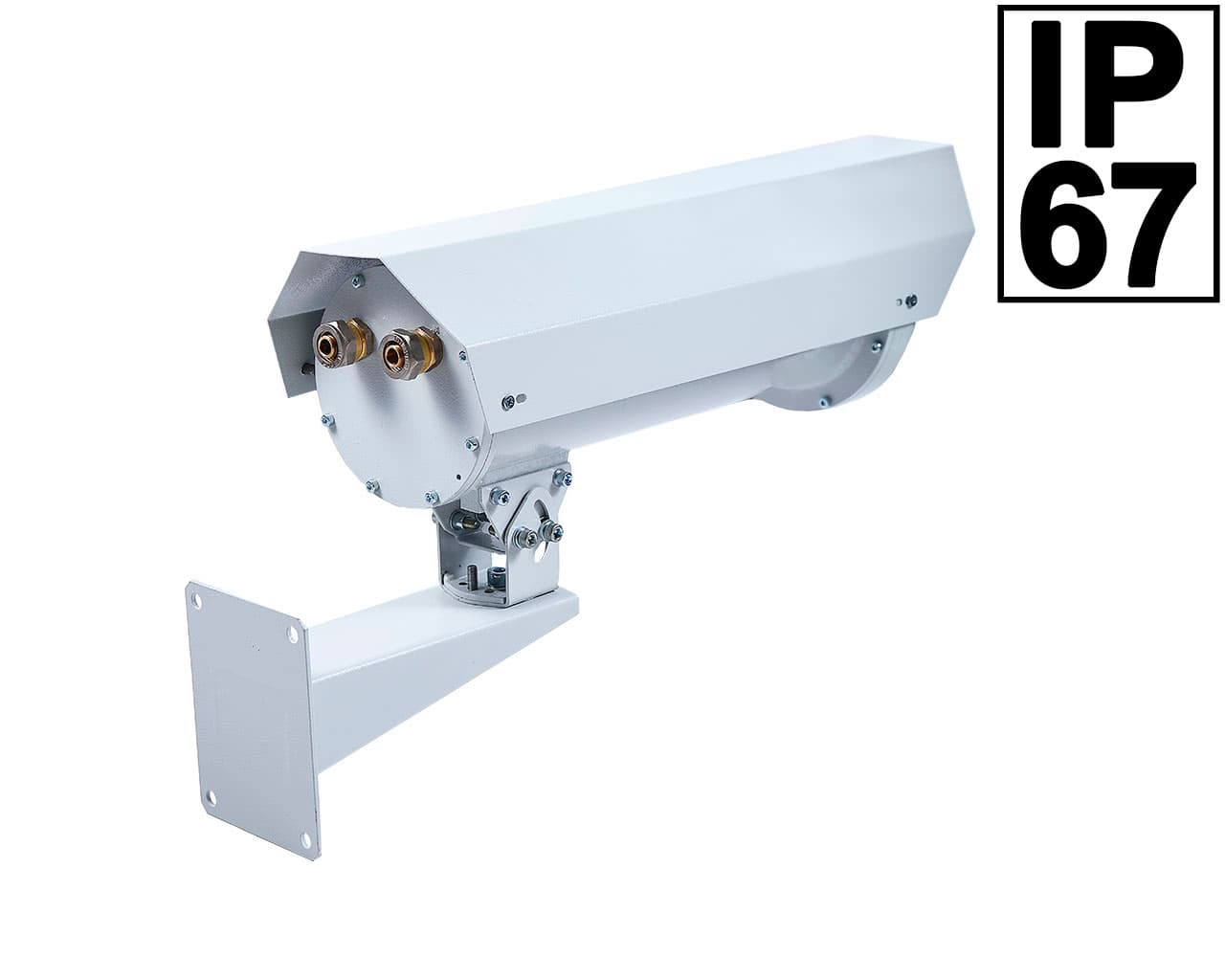

The Orion MK thermohousing is a protected case with a protection rating of IP67. The shell is made of mild steel; corrosion-resistant steel; aluminum alloy.The body is a hollow cylinder with welded flanges for attaching the covers.The back cover of the casing is fixed to the casing with six screws and has two female-threaded fittings on the outside for installing cable glands, and on the opposite side, which is installed inside the casing, a power board with thermostats is mounted.With the help of thermostats, it is ensured that the inner space of the thermo-casing is heated.With a "cold start" power is supplied to the camcorder after warming up the inner space of the thermal casing.When the temperature reaches above + 55 ° C, the video equipment power supply is cut off.The emitter board has eight light-emitting diodes of the infrared spectrum of a luminescence, on top of which optical lenses are installed, which have a positive effect on the characteristics of the searchlight, depending on the vision conditions of video surveillance.A wide selection of optical lenses of the projector allows you to change the parameters of video surveillance, increasing the range or widening the viewing angle.The design of the floodlight has a photo relay (gloomy sensor) that allows you to react to illumination by giving a signal to turn on or off the illumination.The built-in emitter is installed in the front flange of the housing and is fixed by a cover with a light-transmitting window made of impact-resistant glass.To exclude the ingress of moisture, dust, rubber seals are used at the attachment points of the removable body parts.A visor mounted on top of the body is also an element limiting adverse environmental conditions.

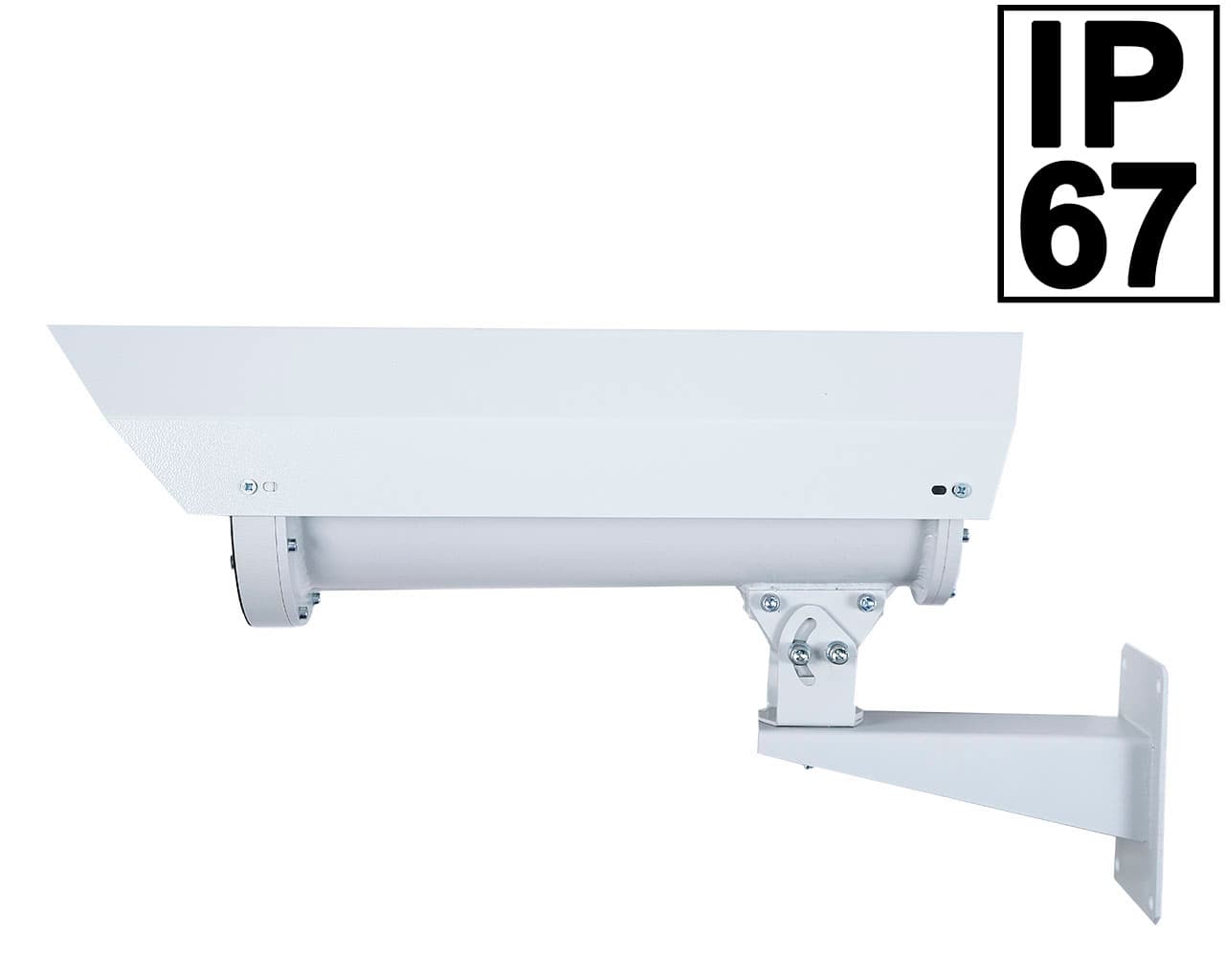

Orion OP is supplied with a bracket for mounting on a horizontal or vertical plane, as well as a console bracket for mounting on a pipe.
| Sheath protection degree | IP 67 | ||
| Supply voltage | 12V ± 10% DC D.C. | ||
= 24-36V ± 10% DC-AC direct or alternating current; | |||
~ 220V + 10% -20% AC, alternating current | |||
| Consumption current, no more, (effective value) | heated | without heating | |
| Type-1 | DC current = 12V DC current = 24-36V alternating current ~ 24-36V alternating current ~ 220V | 4A 2A 3A 0.3A | 1A 0.5A 0.8A 0.1A |
| Type-3 | DC current = 12V DC current = 24-36V alternating current ~ 24-36V alternating current ~ 220V | 3A 1.5A 2.3A 0.25A | 1A 0.5A 0.8A 0.1A |
| Power supply of installed equipment | Voltage | 12V ± 10% | |
| Consumption current, no more | 0.75A | ||
| Maximum power of installed equipment | at temperatures up to + 25 ° С | 9W | |
| at temperatures up to + 45 ° С | 5W | ||
| Cold start temperature | + 0 ° С (± 3 ° С) | ||
| Heating temperature (on / off) | + 5 ° C / + 12 ° C | ||
| Emergency Power Off Temperature | 55 ° C (± 3 ° C) | ||
| Infrared illumination | 10 °, 30 °, 60 °, 80 ° | ||
| Video equipment dimensions, mm type-1 type-3 | 220x70x60 95x50x45 | ||
| Body material | mild steel 10 or 20 stainless steel 12Х18Н10Т Aluminium alloy | ||
| Overall dimensions, mm, no more type-1 type-3 | 585x372x158 424x264x115 | ||
| Weight, kg, no more type-1 type-3 | eleven eight | ||
The body material contains a total of no more than 7.5% magnesium, titanium, zirconium;
Designation when ordering
| Orion OP | Type 1 | - A - | 220 | - KM15 - | IR30 | - OS - | CT scan |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | eight |
