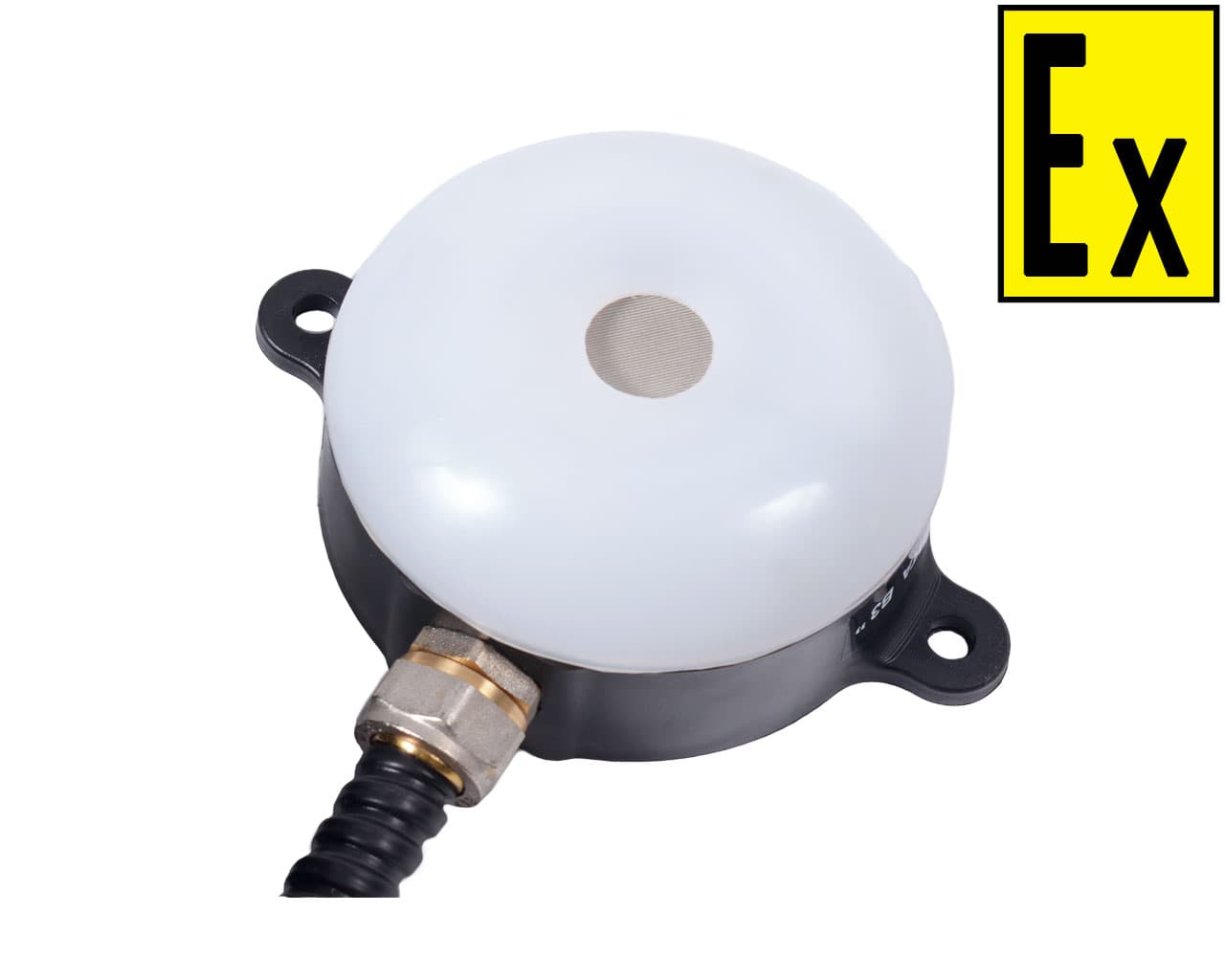

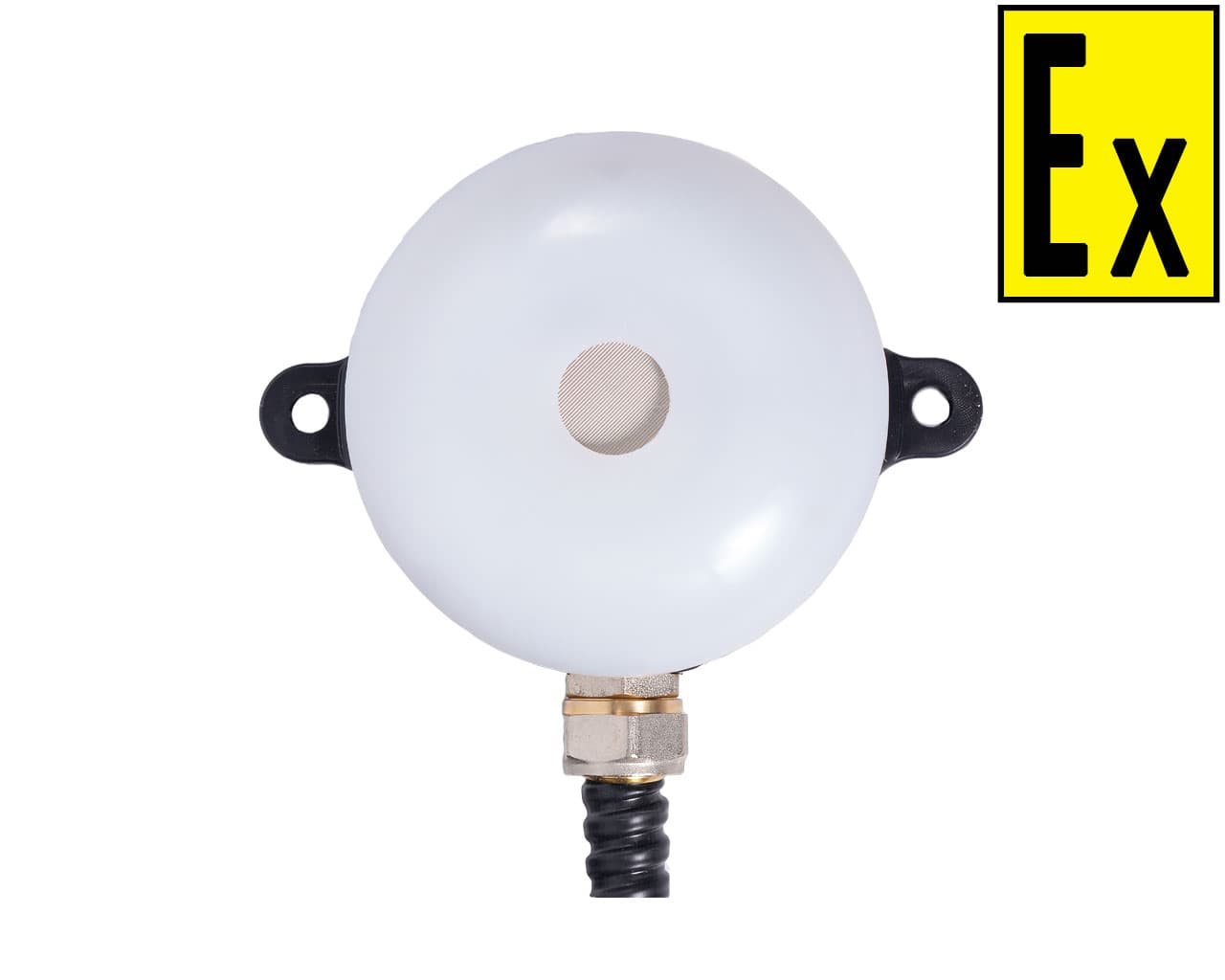

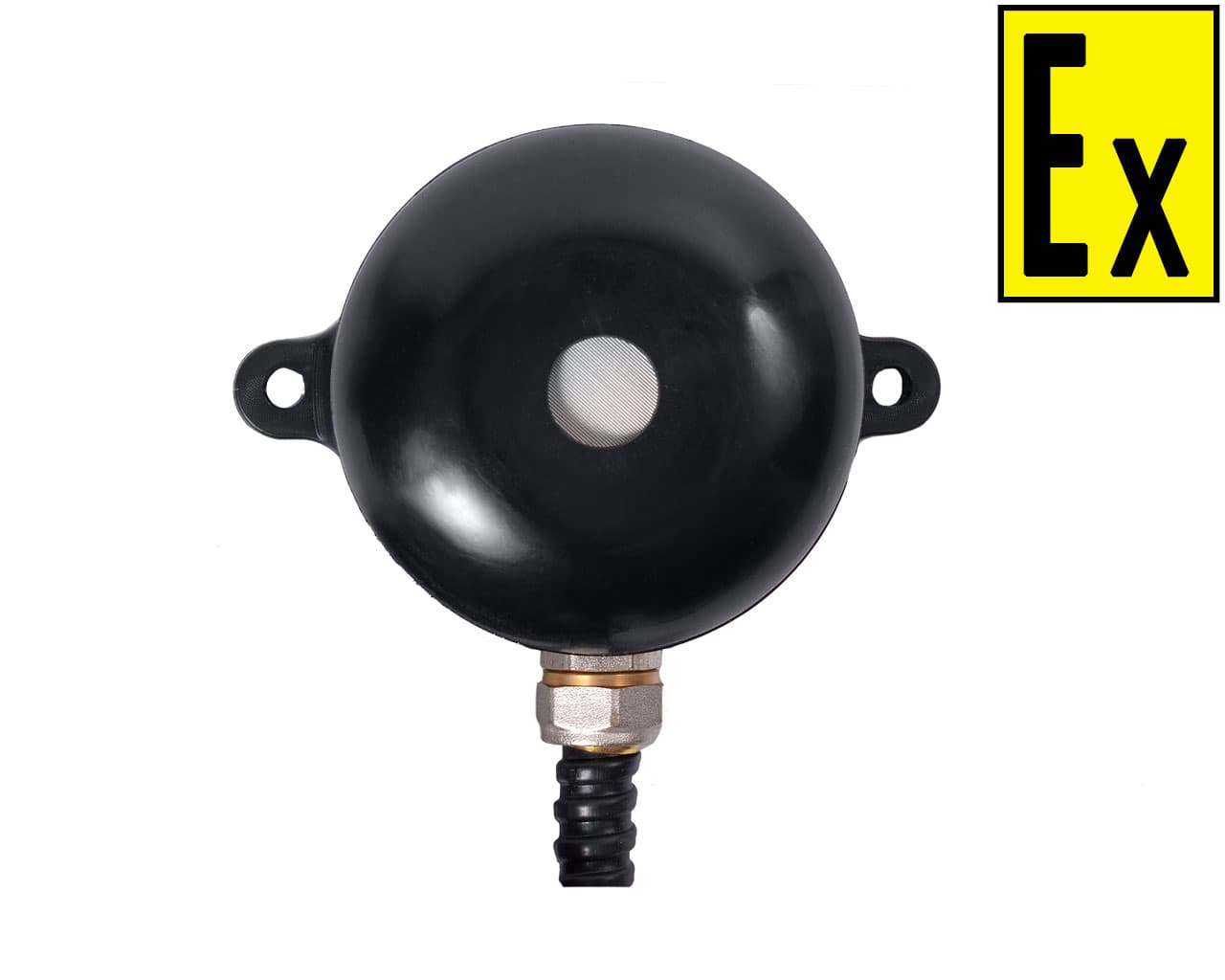

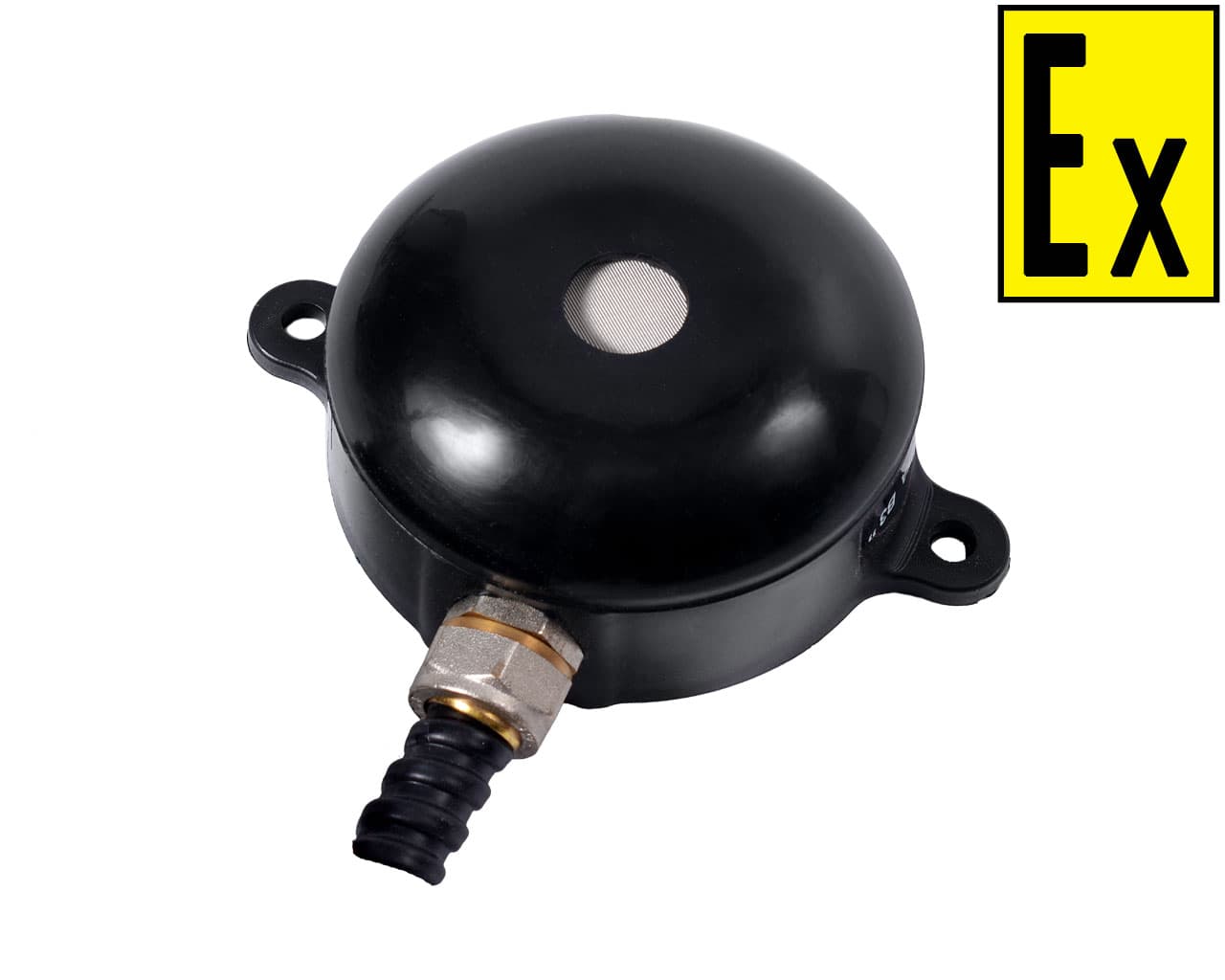

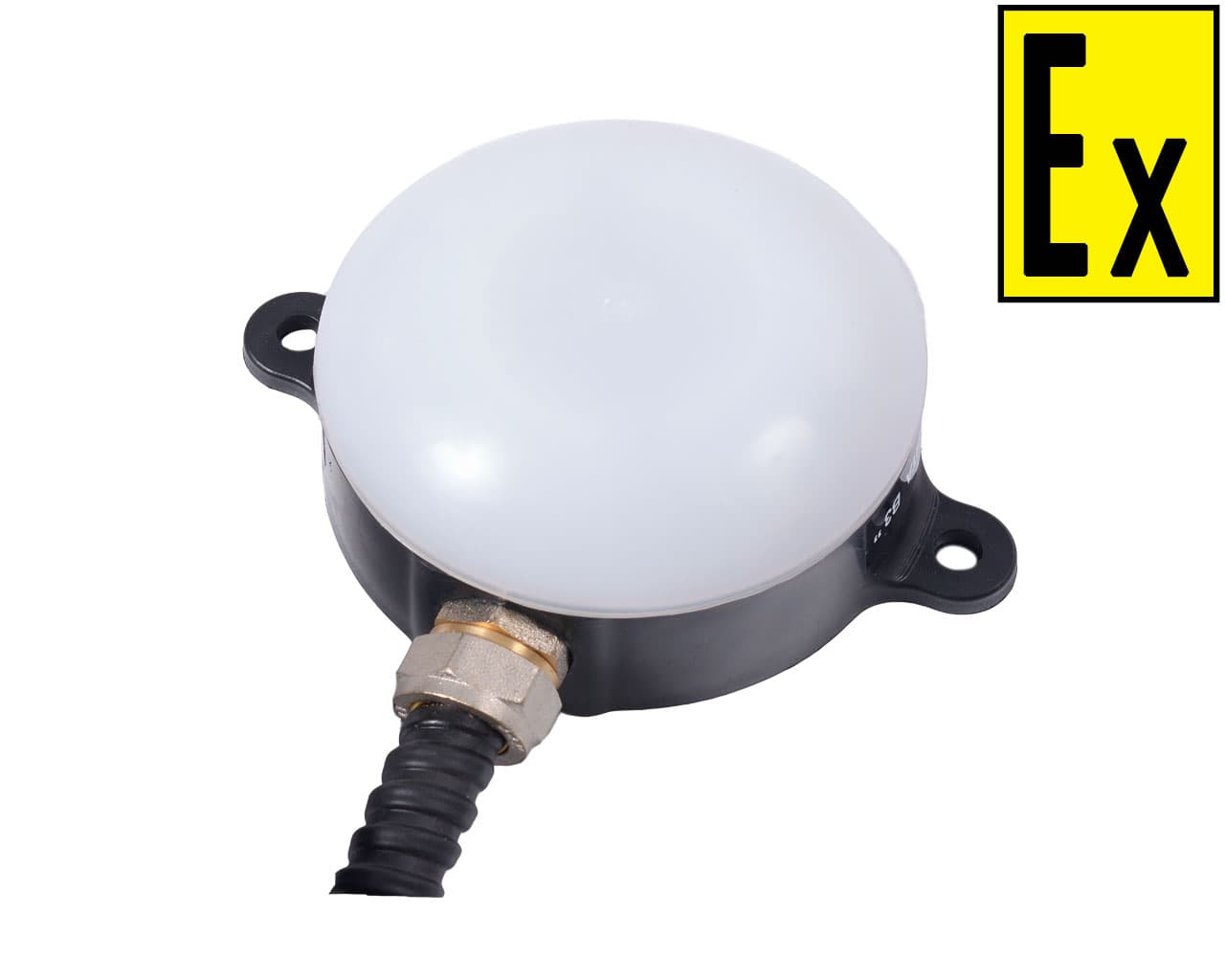

The annunciators are designed to provide the possibility of supplying light and sound alarms in fire alarm and fire extinguishing systems when working together with receiving and control devices.
| Orbit VZ Z | Orbit VZ S | Orbit VZ NW | |
| Power supply from a DC voltage source | = 12-30 V | = 12-30 V | = 12-30 V |
| Maximum current consumption | 0.15 A | 0.08 A | 0.2 A |
| Orbit VZ Z 220V | Orbit VZ S 220V | Orbit VZ SZ 220V | |
| Powered by AC voltage | ~ 220 V | ~ 220 V | ~ 220 V |
| Maximum current consumption | 0.04 A | 0.03 A | 0.06 A |
| Type and level of explosion protection of the siren | PB Ex mb ib I Mb X / 1 Ex mb ib IIC T5 Gb X / Ex tb ib IIIC T100 ° C Db X | ||
| Sheath protection degree | IP 65 | ||
| dimensions | 138x100x58 mm | ||
| Sound pressure at a distance of 1.00 m | 105 ± 5 dB | 105 ± 5 dB | |
| Signal color | Red (default) Yellow Green White Blue | Red (default) Yellow Green White Blue | |
| Weight | No more than 1.0 kg | ||
| Temperature range | -60 ° ... + 85 ° C | ||
| Material | Polyamide | ||
The siren is supplied with a power cable in a metal hose 1.5 m long or at the request of the customer.For installation, there is a sleeve at the end of the siren power cable, which is screwed onto the cable gland of the switch box with a G 1/2 thread.
3D model of the explosion-proof fire alarm "Orbita VZ" 22.44.01.03184.141. Type Approval Certificate of the Russian Maritime Register of Shipping EAEU No. RU D-RU.PA01.B.65998/21. Declaration of Conformity to TR CU 020/2011 "Electromagnetic Compatibility of Technical Equipment" EAEU No. RU D-RU.PA01.B.66129/21. Declaration of Conformity to TR CU 004/2011 "On the Safety of Low-Voltage Equipment" EAEU No. RU D-RU.PA01.B.66129/21. Declaration of Conformity to TR CU 020/2011 "Electromagnetic Compatibility of Technical Equipment" Refusal decision No. 21/06/0244 in certification of TR CU 010/2011 "On the safety of machinery and equipment" EAEU RU C-RU.PB74.B.00238/21. Certificate of Conformity with EAEU TR 043/2017 "On Requirements for Fire Safety and Fire Extinguishing Equipment" EAEU RU C-RU.AZh58.B.03817/21. Certificate of Conformity to TR CU 012/2011 "On the Safety of Equipment for Work in Explosive Environments" Operation manual. Explosion-proof fire alarm light ORBITA VZ S Operation manual. Combination light-sound explosion-proof fire alarm device ORBITA VZ SZ Operation manual. Explosion-proof fire alarm system ORBITA VZ Z
