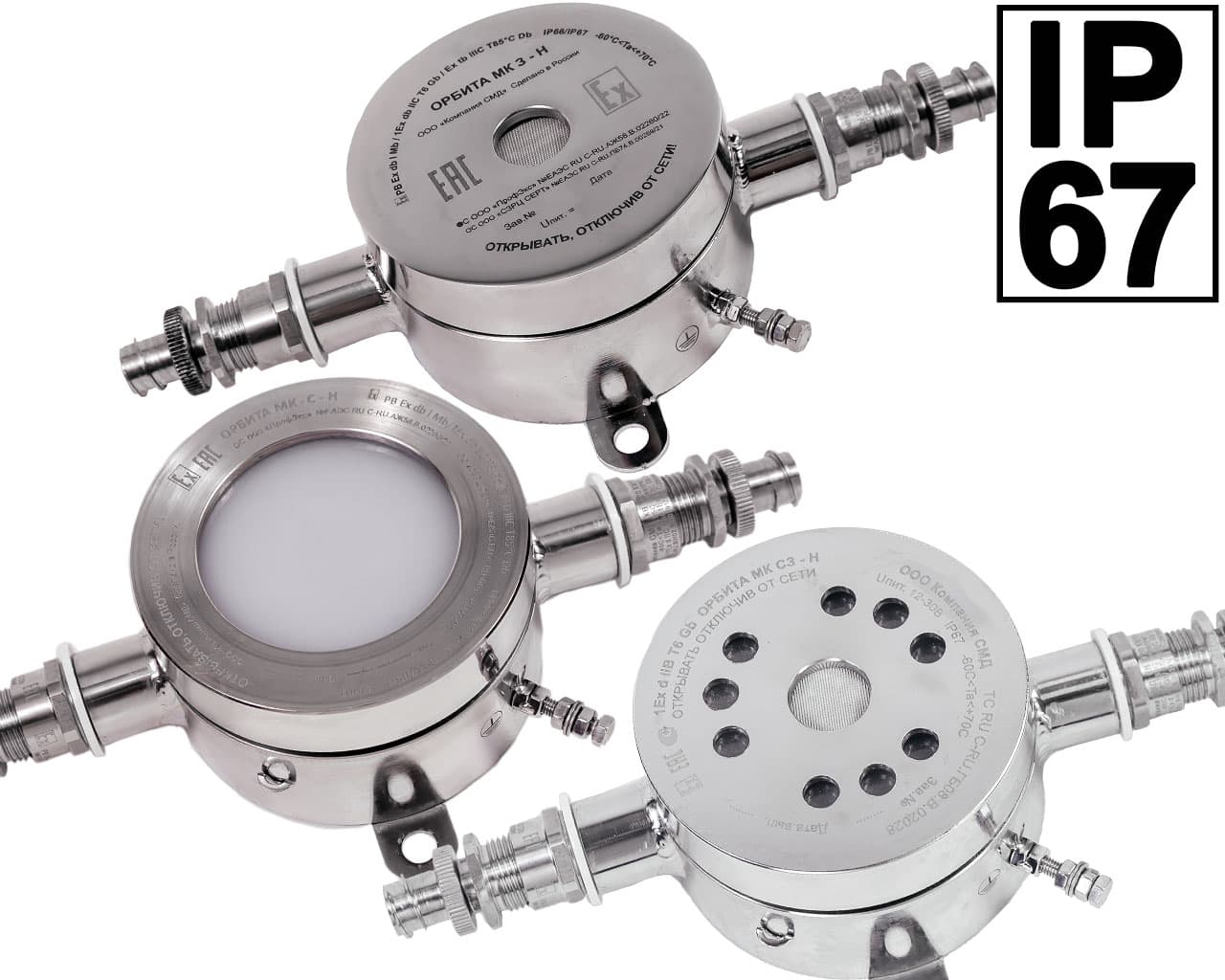

Light, sound and light-sound general industrial fire annunciators of the ORBITA OP S/Z/SZ N models are used in fire alarm systems. Annunciators are intended for use as a light and sound means of notification.
The design of the annunciator complies with the requirements of TR TS 043/2017, GOST 53325-2012.
The body material of the annunciators is corrosion-resistant steel 12X18H10T.
Degree of protection of the siren from water and dust IP66/IP67 according to GOST 14254-2015.
The annunciators can be operated in the climatic zone OM (MU), UHL (NF), HL (F) of category 1 in an atmosphere of type II - IV according to GOST 15150-69 in the temperature range from minus 60 ° C to plus 70 ° C, and relative humidity air 100% at a temperature not exceeding 25°C and 95% non-condensing at a temperature not exceeding 40°C.
According to the method of protecting a person from electric shock according to GOST 12.2.007.0, the annunciator corresponds to class III for the version with a supply voltage of 12-30V from DC sources and class I for the version with a supply voltage of 220V from AC sources.
In terms of electromagnetic compatibility, the annunciator meets the requirements of GOST R 50009-2000 for the second degree of rigidity.
The design of the annunciator ensures their fire safety in accordance with GOST 12.1.004-91.
The annunciators are equipped with two cable glands of the KV, KV series TU 27.33.13-359-81888935-2019. Connecting thread of cable glands M20x1.5. Cable glands allow you to enter and exit round cables of various diameters:
| Orbit OP N S | Orbit OP N Z | Orbit OP N NW | |
| Light notification operating modes: | constant; intermittent | constant; intermittent | |
| Sound notification operating modes: | "siren"; "bugle" | "siren"; "bugle" | |
| Supply voltage range: | 12-30V from DC sources; 198-242V from AC sources |
12-30V from DC sources; 198-242V from AC sources |
12-30V from DC sources; 198-242V from AC sources |
| Maximum consumed current, no more | 100 mA for Upit=12Vdc 70 mA for Upp=24Vdc 40 mA for Upp~220Vac |
150 mA for Upit=12Vdc 90 mA for Upp=24Vdc 60 mA for Upp~220Vac |
200 mA for Upit=12Vdc 115 mA for Upp=24Vdc 80 mA for Upp~220Vac |
| Maximum cross section of wires connected to the terminals: | 2.5 mm2 | ||
| Mass of annunciator, no more | 1.9 kg | ||
| Overall dimensions, no more | 144x138x61 mm | ||
| Sound pressure: | |||
| at a distance of 1.00 m: | 105±5 dB | ||
| at a distance of 3.00 m: | 90±5 dB | ||
| Flash frequency: | 0.5-1 Hz | 0.5-1 Hz | |
| Glow color (red by default): | red; yellow; green; blue; white | red; yellow; green; blue; white | |
| Audio signal frequency range: | 1500-3000 Hz | ||
| Sound modulation frequency, siren 1: | 3-4 Hz | ||
An example of a designation entry when ordering:
| ORBIT OP | Z | X 1 | H | X 2 | X 3 |
| 1 | 2 | 3 | 4 | 5 | 6 |
EAEU No. RU D-RU.PA01.B.65998/21. Declaration of Conformity to TR CU 020/2011 "Electromagnetic Compatibility of Technical Equipment" EAEU No. RU D-RU.PA01.B.66129/21. Declaration of Conformity to TR CU 004/2011 "On the Safety of Low-Voltage Equipment" EAEU No. RU D-RU.PA01.B.66129/21. Declaration of Conformity to TR CU 020/2011 "Electromagnetic Compatibility of Technical Equipment" EAEU RU C-RU.PB74.B.00238/21. Certificate of Conformity with EAEU TR 043/2017 "On Requirements for Fire Safety and Fire Extinguishing Equipment" Operation manual. General-purpose fire alarm light device ORBITA OP S N Operation manual. Combination light and sound fire alarm for general industrial use ORBITA OP SZ N Operation manual. General-purpose industrial fire alarm system ORBITA OP Z N
